PEX-b/AL/PEX-b PIPELINE SYSTEM

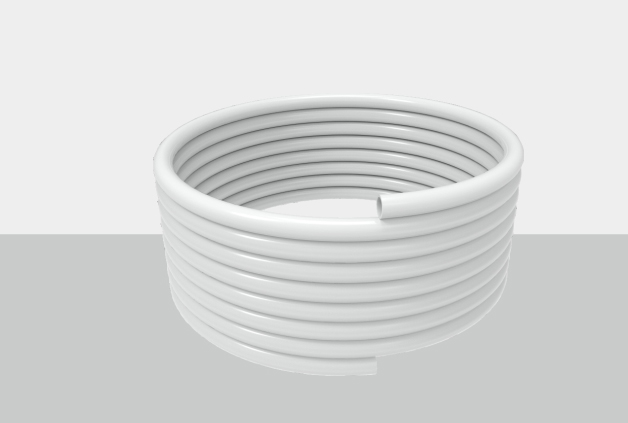

PEX-AL-PEX霍诺威铝塑复合管

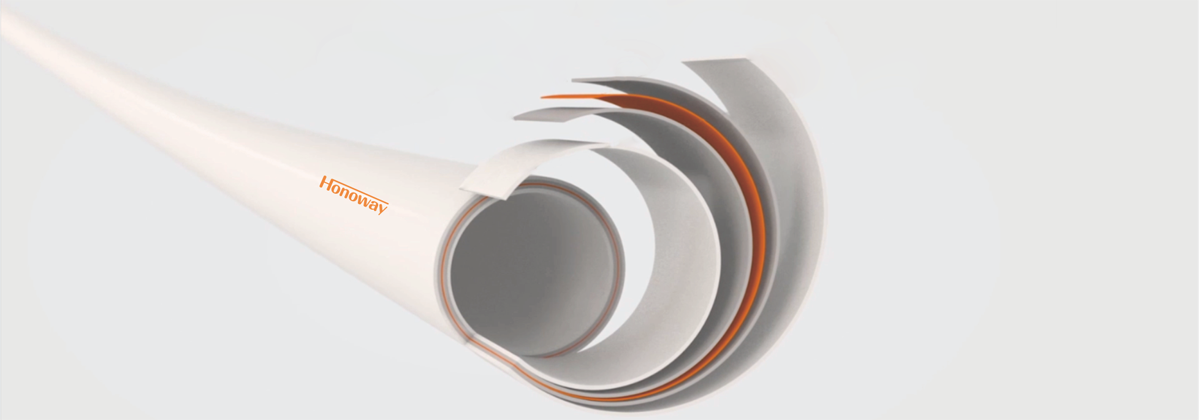

PEX/AL/PEX铝塑复合管是以激光技术或对接焊铝带为中间层，内外层均为硅烷交联聚乙烯（PEXb)原料，层间采用热熔胶，通过挤出成型方法复合而成的管材。 由于硅烷是正面体结构，其三个点上的---OCH3原子团都可以参与反应，因而其反应产物为立体网络结构，其物理机械强度综合性能相对较好，蠕变性小。其聚乙烯分子链之间Si-O-Si分子桥，而非C---C分子桥，因而不易受到氧的攻击，热氧稳定性好。更由于其为多点立体交联，因而在同等交联度下，其交联密度远远高于过氧化物交联产物（PEXa)。就大大增强了其高温下的耐压能力。
PEX/AL/PEX aluminium-plastic composite pipe is made of butt-welded or butt-welded aluminium strip as the middle layer and silane cross-linked polyethylene (PEXb) as the inner and outer layers. Special hot melt glue is used between layers and the pipe is compounded by extrusion method. Because silane is a front-body structure, OCH3 atoms at three points can participate in the reaction, so its reaction product is a three-dimensional network structure, its physical and mechanical strength is relatively good, and its creep is small. The Si-O-Si molecular bridge between the polyethylene molecular chains is not C-C molecular bridge, so it is not easily attacked by oxygen and has good thermal and oxygen stability. Because of its multi-point stereo crosslinking, the crosslinking density of PEXa is much higher than that of PEXa at the same crosslinking degree. It greatly enhances the pressure resistance at high temperature.
-
质量保证 QUALITY ASSURANCE COMMITMENT
霍诺威PEX/AL/PEX硅烷交联聚乙烯铝塑复合管执行GB/T18997-2-2002标准。长期工作温度为95℃，长期工作压力为1.25MPa,爆破压力为6-9MPa。耐热性在200℃下不变形、不发粘，收缩率小，在70℃，收缩率为0.1%左右。根据ISO/ DIS9080标准（国标GB/T 18252-2000）推荐使用寿命达50年。 HONOWAY PEX/AL/PEX silane crosslinked polyethylene-aluminium-plastic composite pipes are implemented in accordance with GB/T18997-2-2002 national standards. The long-term working temperature is 95 C, the maximum long-term working pressure is 1.25 MPa, and the blasting pressure is 6-9 MPa. The heat resistance is not deformed and sticky at 200 ℃, and the shrinkage rate is small. At 70 (?) C, the shrinkage rate is about 0.1%. According to ISO/DIS 9080 standard (GB/T 18252-2000), the recommended service life is 50 years.

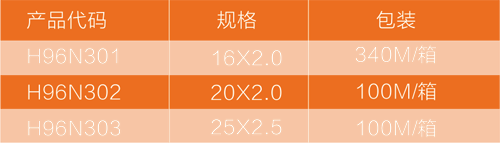

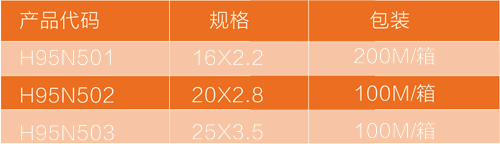

规格和型号
SPECIFICATION AND MODEL
霍诺威铝塑复合管特点
PEX-b/AL/PEX-b
·阻氧保证
·突出卫生性能
·耐高温耐低温
·良好的导热性
·热膨胀系数低
·耐化学腐蚀和耐磨性
·热稳定性和长期耐压性好
oxygen barrier
Highlight health performance
High temperature and low temperature resistance
Good thermal conductivity
Low thermal expansion coefficient
Chemical Corrosion Resistance and Wear Resistance
Good thermal stability and long-term pressure resistance
技术参数
TECHNICAL PARAMETER
适用范围：地板采暖 散热器连接
工作温度：95℃
软化温度：124℃
密度：0.94g/cm3
氧扩散度：阻氧
延长限制：700%
管材导热系数：0.4W/km
颜色：白色
Scope of application: floor heating radiator connection
Maximum operating temperature: 95℃
Softening temperature: 124℃
Density: 0.94g/cmOxygen diffusivity: oxygen barrier
Extension limit: 700%
Pipe thermal conductivity: 0.4W/km
Color: white
引用标准
REFERENCE STANDARD
霍诺威PEX/AL/PEX硅烷交联聚乙烯铝塑复合管目前执行的标准是 GB/T18997.2-2002
霍诺威PEX/AL/PEX铝塑复合管可以有效阻止外界氧分子渗透到管体内部，从而避免水质不好等原因引起的系统主机配件腐蚀。
霍诺威PEX/AL/PEX铝塑复合管针对不同用途有几种连接方式，每次切割操作完，请使用合适工具进行校对，保证长期有效使用寿命。
霍诺威PEX/AL/PEX铝塑复合管在适用范围内的温度和工作压力情况下可用50年。
The current standard for HONOWAY PEX/AL/PEX silane crosslinked polyethylene-aluminium-plastic composite pipes is GB/T18997.2-2002. HONOWAY PEX/AL/PEX aluminium-plastic composite pipe can effectively prevent external oxygen molecules from penetrating into the inside of the pipe, thus avoiding the corrosion of the main parts of the system caused by poor water quality and other reasons. HONOWAY PEX/AL/PEX aluminium-plastic composite pipe has several connection modes for different purposes. After each cutting operation, please use appropriate tools for proofreading to ensure long-term effective service life. HONOWAY PEX/AL/PEX aluminium-plastic composite pipe can be used for 50 years at suitable temperature and working pressure.
-
-
